Material dimensions width max. : Ø 12 mm or Ø 18 mm
Material dimensions height max. : Ø 12 mm or Ø 18 mm
Length interval : 0,1 mm
Typical repeatability : ± 0,2%
Electrical connection : 230 V, 50/60 Hz, 6 A
Compressed air connection : 6 bar
Dimensions (HxWxD) : 400 x 370 x 650 mm
Weight : 65 kg

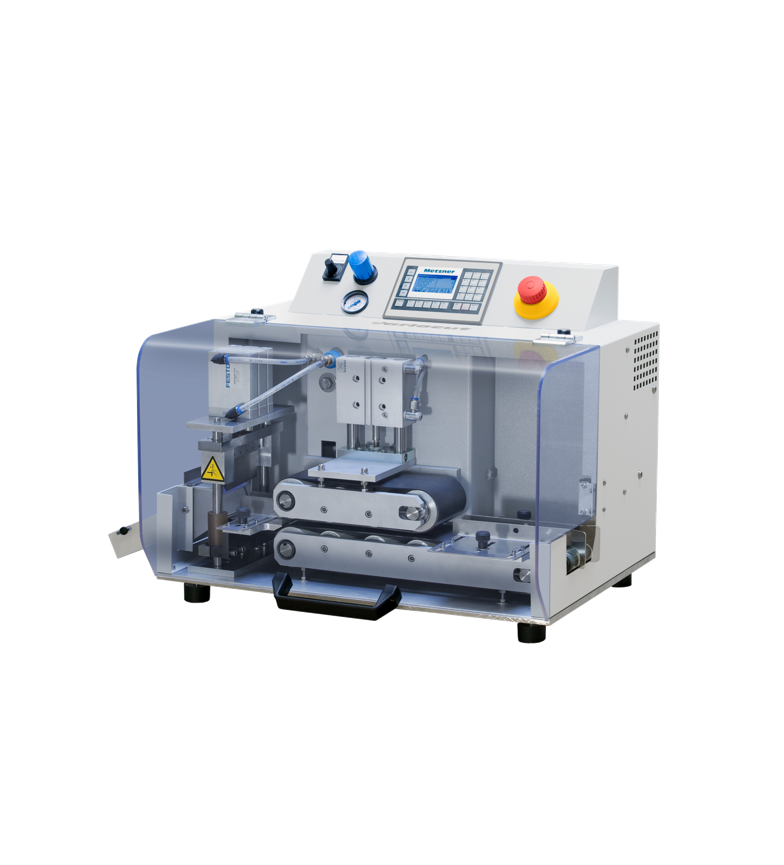

METZNER UNIVERSAL CUTTING MACHINES
- Quick-change cutting tools
- Available in three equipment lines: Red, Green and Blue
- Programmable logic controller
- Standard stepping motor for exact positioning and variable speeds
- Sensitive contact pressure
The tubing specialist with unique precision and working speed for very thin, tension-elastic and pressure-sensitive materials. KL-BV is available in the equipment line Green and as KL-BV Gasket.

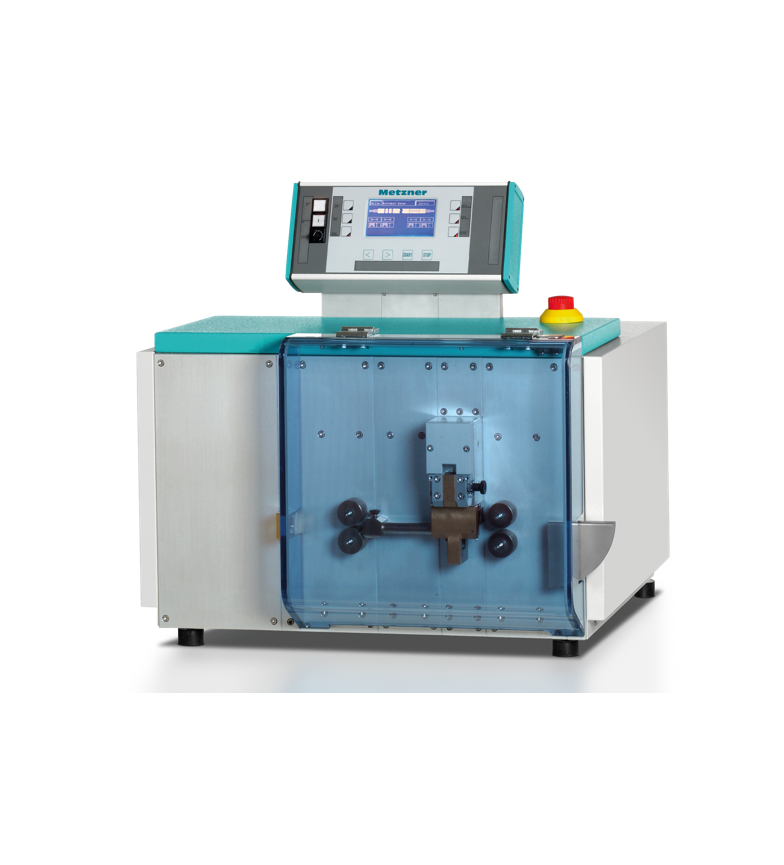

The Metzner KL-BV cutting machine stands out for its precision, compact design, and the wide range of processing options such as silicone tubes, flexible profiles and gaskets.
