1 module 2 module
Assembled product size : Products that can be hold in a hand
Working area : One side of the module only, but possibility to have back to back modules
Pallet size : 120 or 240 mm
Assembly Speed : up to 40 cycles/min (Pallet 120mm) Multiple assemblies per pallet
Indexing repeatability : +/- 0.02 mm
Number of stations : Handling Unit 120mm (60 mm) 6 (12) 12 (24)
Dimensions : Length x Width x Height (mm) 3150 x 1430 x 2420 3870 x 1430 x 2420
Control System : PLC Allen-Bradley or Siemens with open architecture

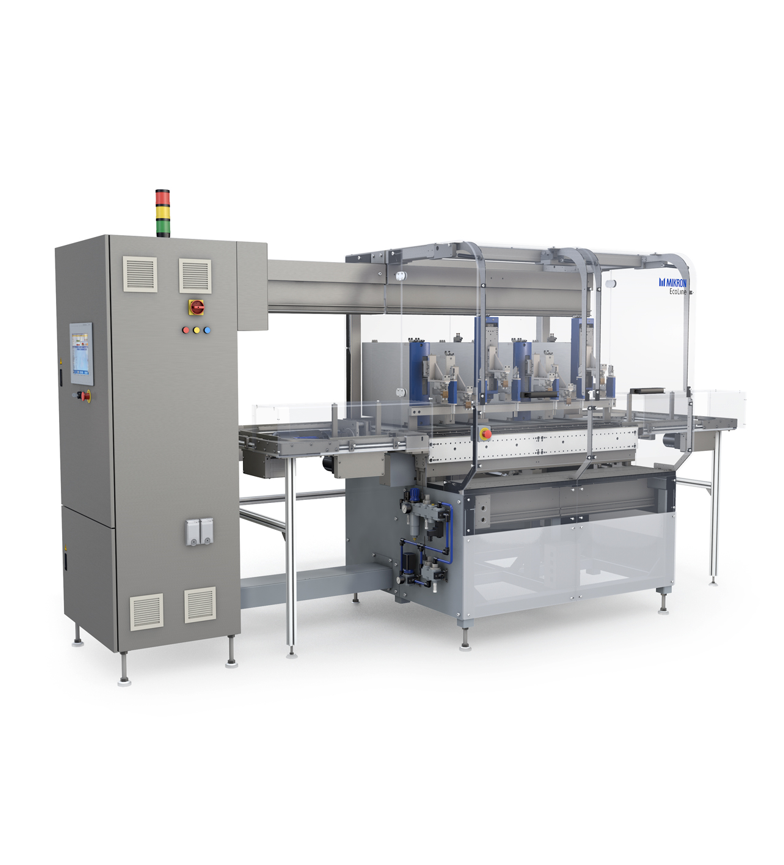

Mikron EcoLine is based on the use of standard modules which offer flexibility and modularity. The Mikron EcoLine is available in single module and double module base machines. These machines can be linked side by side or back to back to optimize the layout for the production facility.
The primary motions of the assembly module are cam driven, thus guaranteeing perfect synchronization between the working units and the pallet indexing mechanism. Each assembly step is followed by a systematic check to ensure continuous and consistent quality.
The combination of manual working stations and automatic modules allows for progressive investment from pilot line to fully automatic line.
